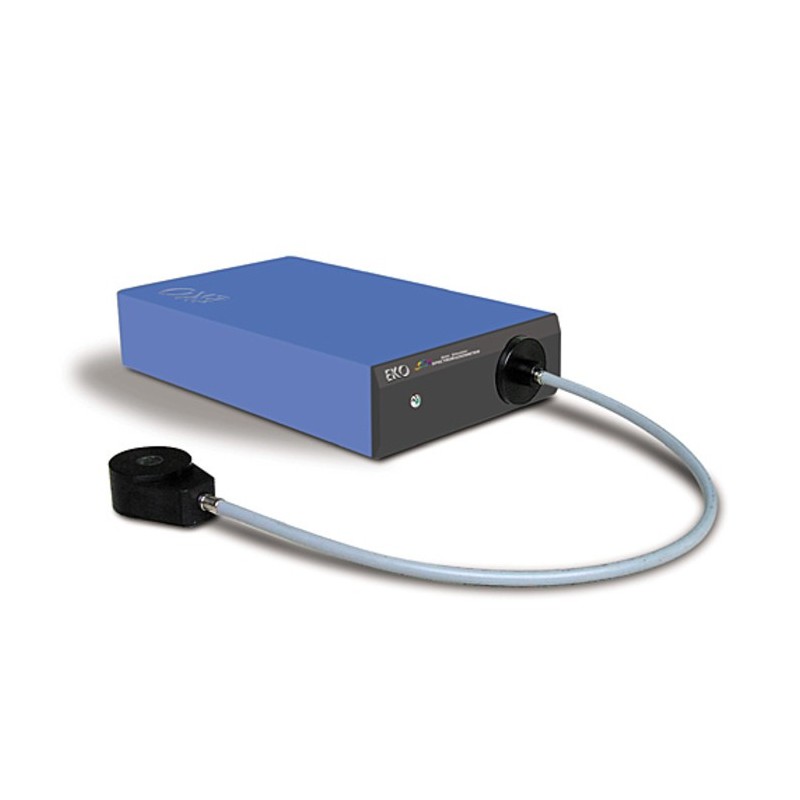

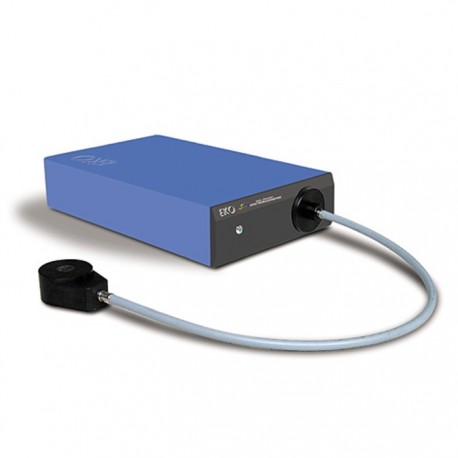

LS-100 Spectroradiometer 350 - 1100 nm
LS-100
New
- Compares with the data obtained in the standard test conditions
- Calculates the integrated irradiance in the specified spectral range
- Calculates the spectral coincidence (JIS C 8912)
- Calculates the difference and ratio compared to the standard data
- Consulta este producto
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
The LS-100 grating spectroradiometer is specially designed for measuring the spectral irradiance of solar simulators which are used in solar cells ressearch. The LS-100 is calibrated against a NIST-traceable standard lamp. It is compact and very easy to operate. The LS-100 is controlled by a PC via a RS232C cable, so that data can be automatically obtained using the operating software. The measurement/analysis software offers advances functionalities to process the obtained data.
| Specifications(typical) | LS-100 | |
| Spectral range |
350 to 1100 nm (Xenon Lamp) 350 to 1050 nm (Light source other than Xenon Lamp) |
|
| Spectral interval | 3.3 nm | |
| Spectral resolution | 10 nm | |
| Spectral accuracy | < 3 nm | |
| Aperture angle (Full view angle) | 30° | |
| Stray light | < 0.15% | |
| Measurement time | Approximately 15 sec | |
| Communication | RS232C | |
| Software | Applicable to MS-Windows 95/98 SPDac-for measurement, SPMan-for data analysis Automatic calculation of spectral match accuracy (IEC904-9) | |
| Unit of output | mW/cm2/nm | |
| Power supply | DC12V, 0.8A | |
| Size / Weight | W50 x D250 x H150 mm / 1.8kg | |
