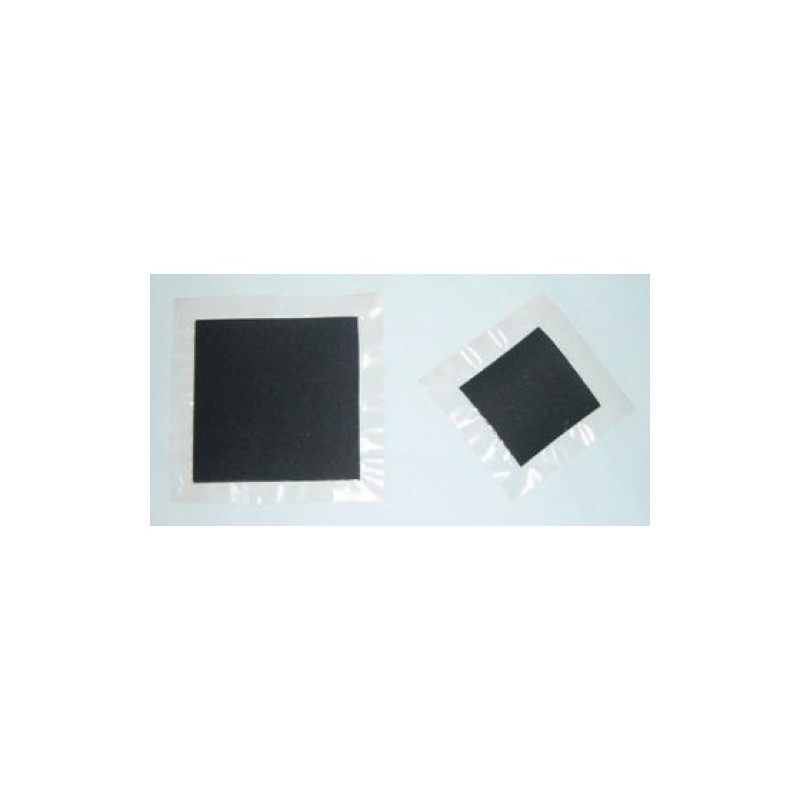

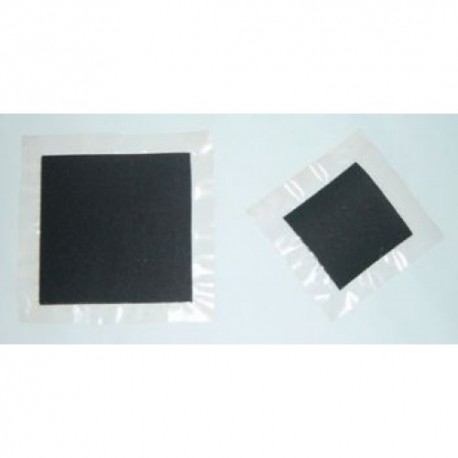

Hydrogen Air CCM - 3 Layer MEA Ref.: AO-2014010

Reference

Manufacturer: AO-Electronics

Condition: New

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Select Size

Add to wishlist

OVERVIEW
SPECIFICATIONS
Data sheet

Type of Cells	MEA's & GDL

These Hydrogen Air MEAs are 3-Layer, Catalyst Coated Membrane Electrode Assembly (MEA) is for use in Hydrogen/Air Fuel Cells.
It is one of the most economical and cost effective MEAs in the market. The standard configuration features a mid-range Platinum loading (0.5 mg/cm²) on a 0.002” membrane (Nafion® 212).
Custom sizes and configurations are also available with no minimum order quantities and typical lead times of 1 to 5 business days, even for custom configurations.

MEA Properties
MEA Type	Hydrogen Air Fuel Cell
Membrane Type	Nafion™ PFSA NR-212
Membrane Thickness	50.8 micrometers (2 mil)
Anode Loading	0.5 mg/cm²
Anode Catalyst	60wt% Pt on Vulcan (Carbon)
Cathode Loading	0.5 mg/cm²
Cathode Catalyst	60wt% Pt on Vulcan (Carbon)
