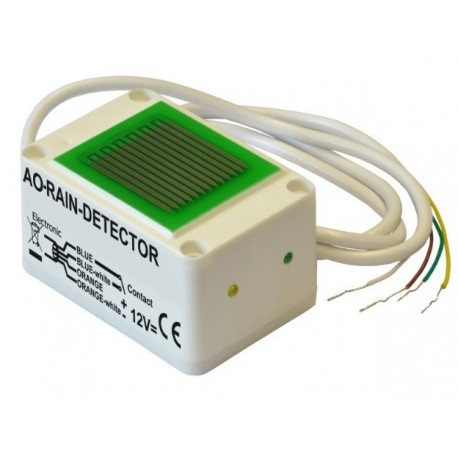

AO-DET ECONOMIC RAIN DETECTOR (WITHOUT RAIN-GAUGE)

Reference AO-DET

Condition: New

The rain sensor electronics respond to the electrical conductivity of the water to open/close devices such as blinds, skylights, etc.

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	37,00 €	0%
5+	36,26 €	2%
10+	35,52 €	4%
15+	34,78 €	6%

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
specifications
Data sheet
Download

The Sensor measures:	Rain/Snow/Hail/Sleet/Freezing
Output Signal:	Pulses
Cable Length:	1 meter
Power Supply:	12 V
Sensor for use in:	Outdoor

AO-DET Data Sheet Download (536.97k)

If the sensor plate comes into contact with rain or snow, fog or hail, a relay is activated. The blinds can be retracted with this, the skylights can be closed or a rain alarm can be activated.

The automatically heated surface of the sensor prevents any freezing or wetting of the sensor surface.

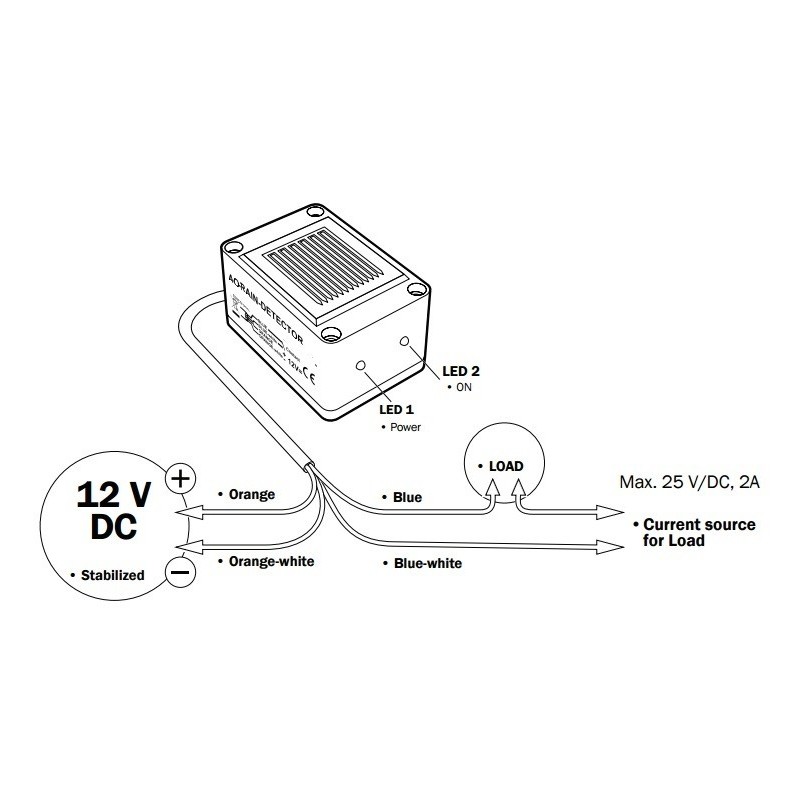

2 installed LEDs indicate function. The electronics are encapsulated in an impermeable form.

Technical Data
Operating voltage	12 V/DC
Current consumption without / with heating	ca. 8 / 160 mA
Relay contact	1 x ON, maximum load 25 V, 2 A
Sensor heating	automatically in case of contact with rain
Light-emitting diode 1	indication that the rain sensor works
Light-emitting diode 2	indication that rain is reported and the relay has switched on
Duty cycle of the relay	as long as the sensor is wet
The module is encapsulated waterproof.
Active sensor surface, gold-plated	ca. 29 x 30 mm
Dimensions	ca. 65 x 45 x 36 mm
