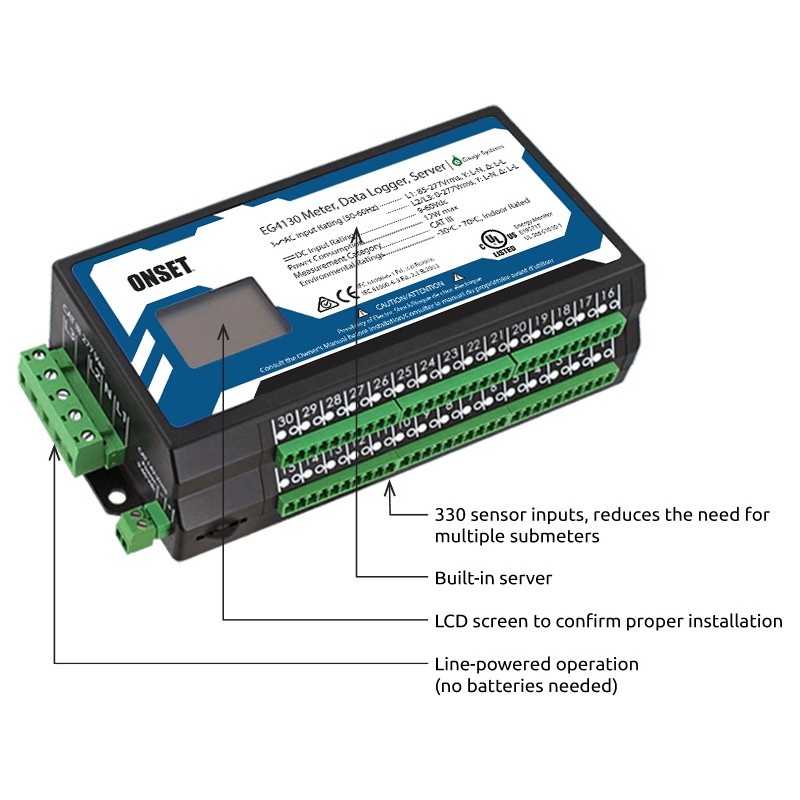

EG4130 30 Input Meter Data Logger

Reference EG4130

Manufacturer: Onset

Condition: New

DISCONTINUED

The EG4130 combines an energy meter, data logger, and a web server. This powerful combination lets you measure, store and retrieve (V, A, VAr, kWh, etc.) data directly from the device or from a remote location via the internet.

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our More info about this product form

Onset Data Loggers

Onset Computer Corporation

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
Compatible Loggers
Data sheet
Download
Accessories

Environment of Use	Indoor
Type of Logger	Multicanal
Measured Parameters	V, A, W, Wh, Hz, VA, VAr, THD, deg
Number of Channels	30
Communications	Homeplug AV / Ethernet
Maximum Pulse Rate	50 - 60 Hz
Memory Capacity	64 (data storage points)

EG4xxx Owner’s Manual Download (1.36M)

EG4xxx Conﬁguration Guide Download (1.64M)

EG4130 Datasheet Download (99.96k)

T-ACT AC-Current Transducers Accu from CCSfrom 20 to 250 Amps

Add to cart

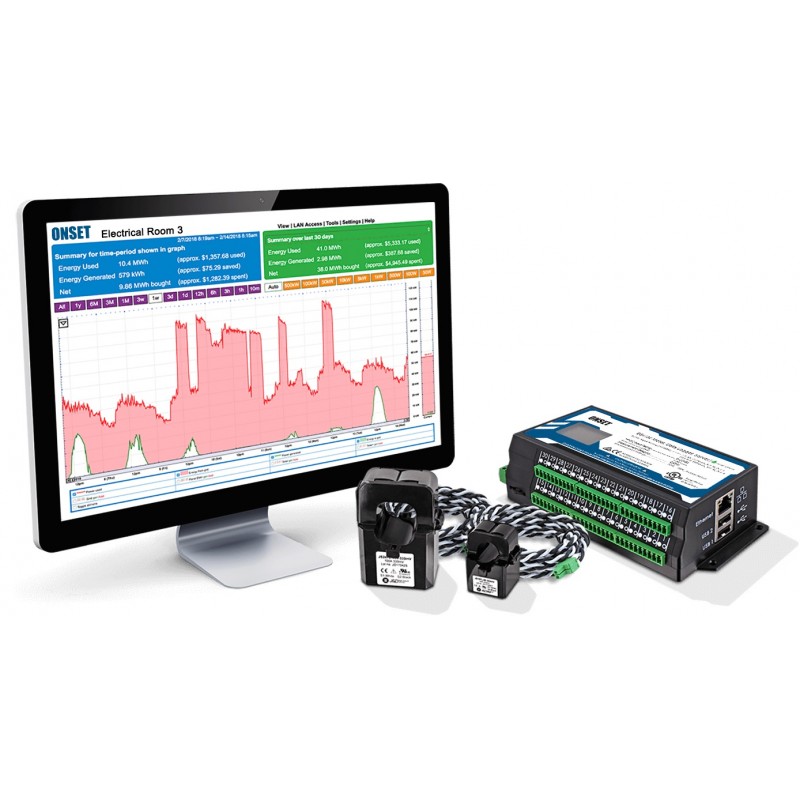

You can view historical and live data for the lifetime of the hardware with the unit’s convenient user interface (UI). Users have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.

Highlighted Features:

- 30 sensor inputs
- Supports wide range of current transformers (CTs) to accommodate virtually any size load
- Built-in web server and graphical monitoring software
- Custom view and alerts; CSV exports of granular data
- Fully web-configurable
- Built-in solid-state memory
- No service contracts
- No batteries

In what environment does this data logger operate?

This data logger operates in an indoor environment.

What measurements does this data logger support?

The EG4130 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Kilowatts (kW), Volt-Amp Reactive, Volt-Amp Reactive hour, Watt Hours (Wh) and Watts (W)

Measurement
AC Voltage:	L1: 85-277 Vrms L2: 0-277 Vrms L3: 0-277 Vrms
DC Voltage:	42 Vrms Power: 9-60 Vdc Measurement: +/-60 Vdc
Current:	30 channels 5-6900A max per channel Fully isolated inputs
Frequency:	50 or 60 Hz
Logging Values:	V, A, W, Wh, Hz, VA, VAr, THD, deg
Power Draw:	12W max, 2W typical
Environmental
Op. Temperature:	-30 to 70 deg C (-22 to 158 F)
Max Altitude:	4000m (13,123ft)
Max Humidity:	80% up to 31 deg C
Meas. Category:	Overvoltage Category III
Location:	Open type indoor device
Pollution Degree:	2
Data Logger Capacity
Register Count:	64 (data storage points)
Granularity: (duration/avg)	1 hour/1 second 1 year/1 minute 10 yrs/15 minute Device Lifetime/1 Day
Safety and Regulatory
Safety:	IEC/UL 61010-1 Ed. 3.0 B:2010
CE:	IEC 61000-6-1 Ed. 3.0 B:2016 IEC 61000-6-3 Ed. 2.1 B:2011
FCC:	FCC Title 47 CFR Part 15-Subpart B Class B ICES-003 Information Technology Equipment Class B
Communication
Homeplug AV:	Compatible with Homeplug AV- adapter within ~100ft. on same phase as L1
Ethernet:	IEEE 802.3 - LAN
User Interface
Compatible Browsers: (Only up-to-date versions supported)	Google Chrome Firefox Safari Internet Explorer
Enclosure
Material:	FRABS
Dimensions:	17 x 8 x 4.6cm
	(6.7 x 3.15 x 1.81in)
Weight:	300g (0.66lbs)
Warranty Standard:	2 years
