UEM80-2D Mid Energy Meter

Reference

Manufacturer: Algodue

Condition: New

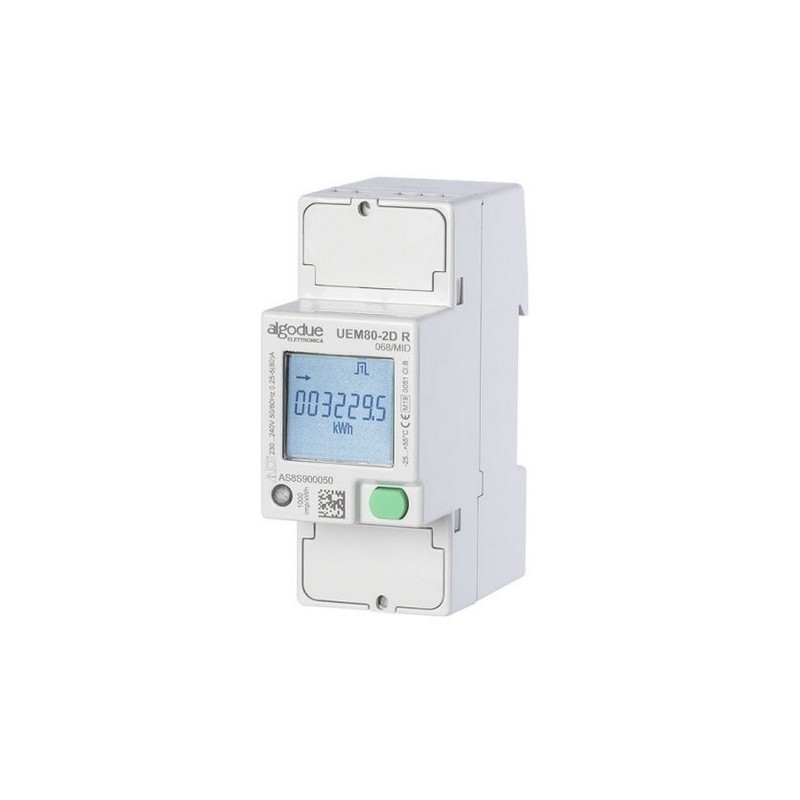

The UEM80-2D is a compact, 2-DIN module single-phase energy meter designed for both industrial and civilian applications. It offers versatile communication options, including RS485 Modbus RTU/ASCII, M-Bus, and Ethernet Modbus TCP, making it ideal for remote energy monitoring and control. The meter is MID-certified, ensuring it meets the necessary standards for billing and energy measurement.

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

189,00 €

tax excl.

Quantity

Select Model

Add to wishlist

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

Environment of Use	Indoor
Type of Logger	Electric Power
Measured Parameters	Multiple Parameters
Application	Energy
With Display	LCD
The Sensor measures:	AC Current

UEM80-2D Data Sheet Download (492k)

UEM80-2D Manual Download (991.25k)

UEM80-2D M-Bus protocol Download (1.29M)

UEM80-2D Modbus protocol Download (931.66k)

UEM80-2D Catalog Download (2.46M)

Key Features:

    Model Variants:
        UEM80-2D R: RS485 Modbus RTU/ASCII communication
        UEM80-2D M: M-Bus communication
        UEM80-2D E: Ethernet (Modbus TCP) communication

    Direct connection: Measures single-phase energy with direct input up to 80A.

    Built-in communication: Allows easy data transmission and integration into remote management systems through RS485, M-Bus, or Ethernet, depending on the model.

    MID Certification: Ensures reliability and compliance for billing applications in both residential and commercial settings.

    LCD display: Backlit for clear visibility, displaying energy usage and real-time power consumption metrics.

    Remote management: A free dedicated application is provided for easy setup, monitoring, and data retrieval from the meter.

    Efficient design: Optimized component selection and reduced internal working temperatures improve performance and extend the product's lifespan.

The UEM80-2D is suitable for applications ranging from energy monitoring in residential areas to industrial energy management, offering high precision, robust communication, and compliance with billing standards.
