AO-900-10 Automatic Ultrasonic Meteorological Station

Reference AO-900-10

Condition: New

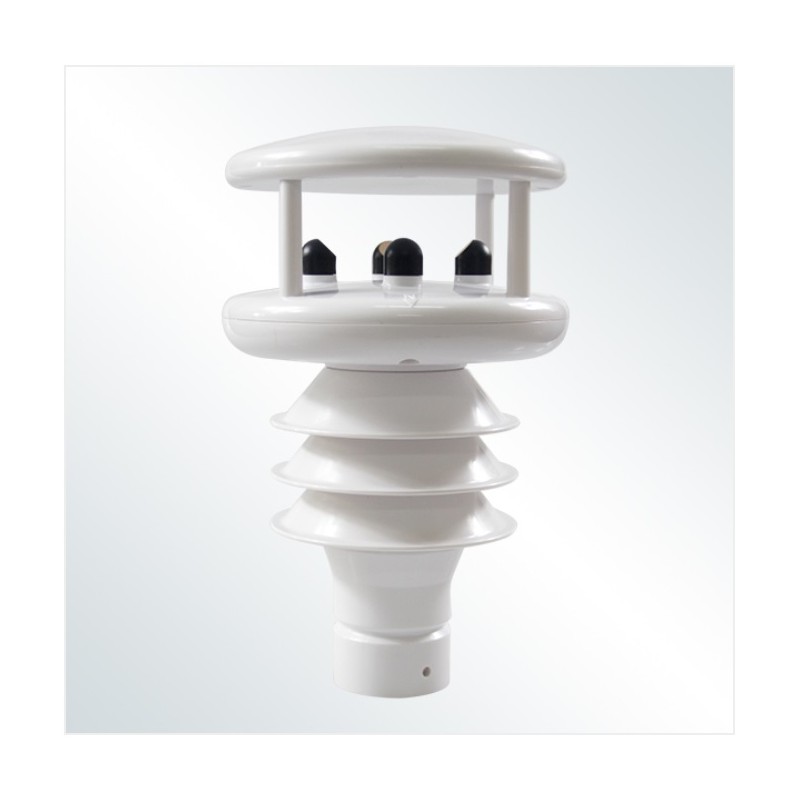

The ultrasonic automatic weather station AO-900-10 uses the ultrasonic probe to measure wind speed and direction, without moving parts, instruments and compact structure, good reliability and long service life.

Consulta este producto

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
ESPECIFICATIONS
Data sheet
Download

IP Classification	IP66
Type of Instrument	Estación Meteorológica
The instrument measures:	Multiple Parameters
Output Signal:	RS485, RS232, SDI-12
Sensor for use in:	Outdoor

AO-900-10 Download (310.74k)

The AO-900-10 Automatic Ultrasonic Weather Station simultaneously measures atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, illumination / UV, dust concentration and precipitation.
The temperature, humidity and air pressure sensor are placed inside the solar radiation shield. Wind speed and direction are measured by ultrasonic sensors.
24G Radar Detection for Rain and can quickly detect rain and its intensity.
The internal GPS global positioning module and electronic compass can be mounted on the system to give a good indication of latitude and longitude and relative speed, which can calculate real and virtual wind speed and direction, and is especially suitable for installation in motion vectors, such as vehicles or special vessels, etc.

CHARACTERISTICS
   * High precision, fast response
   * Easy to install, all weather measurement
   * RS485 / RS232 / SDI-12 output
   * No moving parts, no maintenance
   * Built-in heating device to ensure normal work in cold weather
   * Uses radar precipitation measurement, accurately reflecting rain and start-stop time.
   * Global compass, GPS and BDS global positioning module can be added.

   APPLICATIONS
   * Unattended weather monitoring system
   * Mobile weather monitoring system
   * Electric power safety monitoring
   * Generation of solar or wind energy.
   * Ports and ship navigation.
   * Regional Scenic.
   * Research in meteorological sciences.
